Rokuhan Z-Shorty verlängern

[siggi]

Ueber 2 Jahre sind vergangen, mir fallen die Teile wieder in die Haende, weil ich eine Verlaengerung brauche. Ich bekomme sie immer noch nicht zusammen. Ist da jemand weitergekommen und hat vielleicht ein Foto davon? Oder einfach nur 2 Shortys mittels Polysterol verkleben?

[ubiminor]

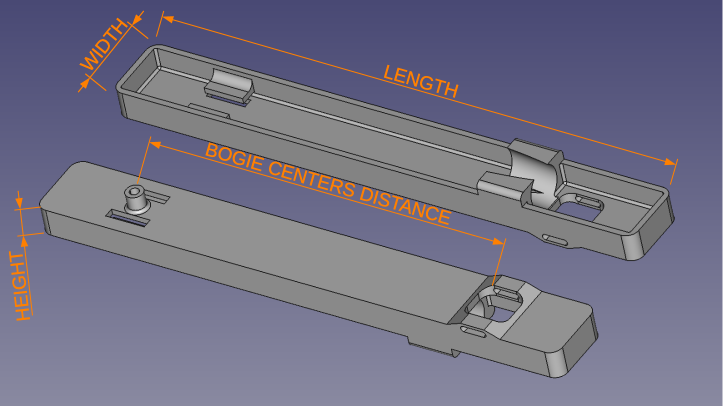

I designed a parametric model for replacing a rokuhan shorty chassis.

Given
A) the distance between bogies
B) the length of the chassis
C) the width of the chassis
D) the height of the chassis

a 3D model of the above characteristics will be generated. Once the model is printed, one has just to extract from a shorty, the motor the two bogies and the PCB and mount everything in the 3D printed chassis.

Siggi, if you send me the values A, B, C and D I can make a digital 3D model for you, which you can print/have printed.

[Klaus M]

That'a a great idea.

I dare you will be flooded with requests

Klaus

[siggi]

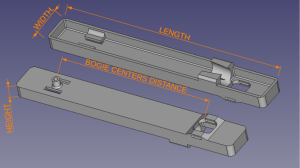

I designed a parametric model for replacing a rokuhan shorty chassis.

Given
A) the distance between bogies
B) the length of the chassis
C) the width of the chassis
D) the height of the chassis
a 3D model of the above characteristics will be generated. Once the model is printed, one has just to extract from a shorty, the motor the two bogies and the PCB and mount everything in the 3D printed chassis.

Siggi, if you send me the values A, B, C and D I can make a digital 3D model for you, which you can print/have printed.

That's a really good offer. I'll send you the values.
